Description

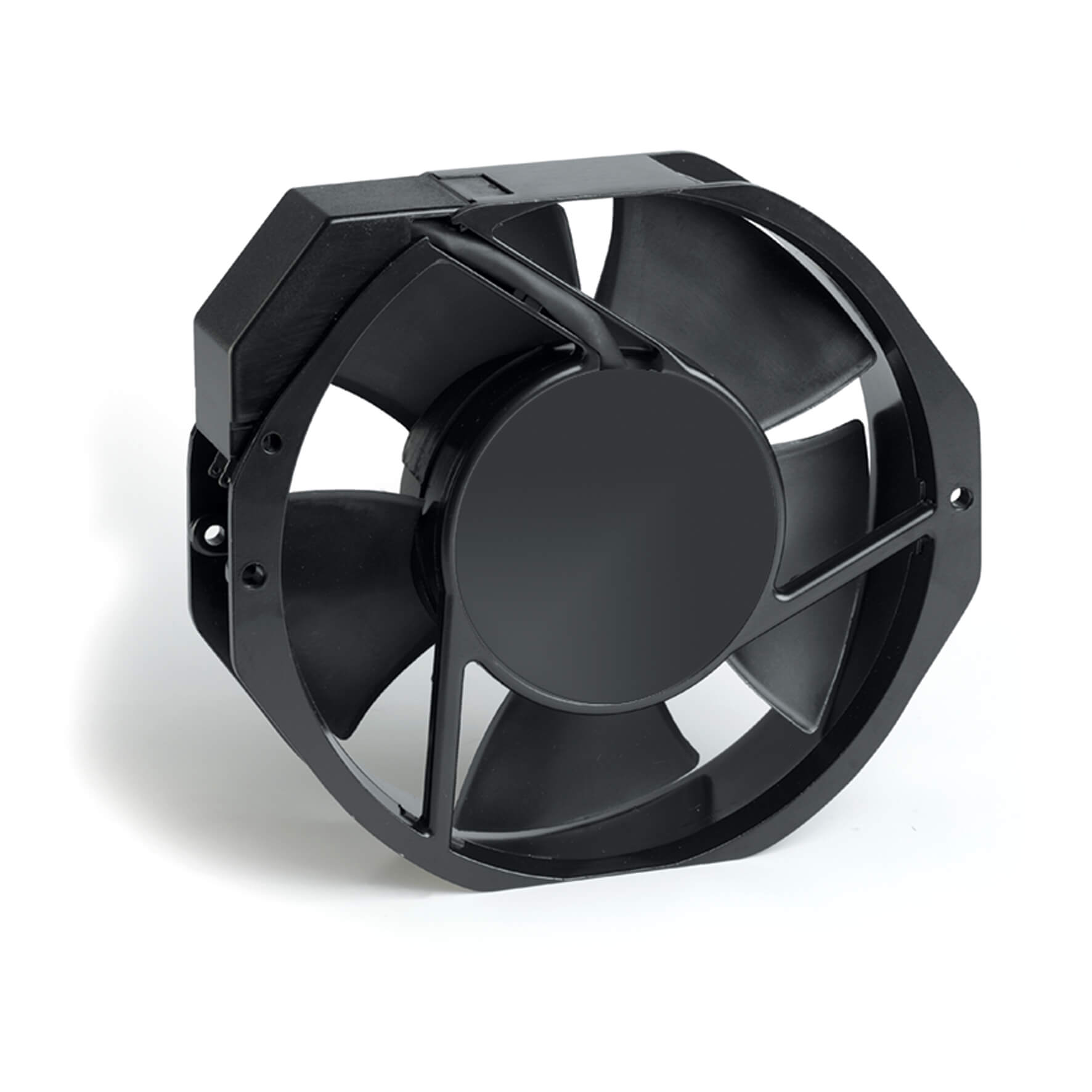

COMPACT FAN 172X150X38MM – VOLTAGE 230 Va.c. AIR FLOW 300/360 M^3/H MECHANICAL PROTECTION IP20
A P P R O V A L S
A p p r o v a l s | C E ; c U R u s ; U K C A |
---|
E L E C T R I C A L D A T A
A p p l i a n c e C l a s s | I |
---|---|
F r e q u e n c y | 50/60 Hz |
I n s u l a t i o n C l a s s | B |
M o t o r P r o t e c t i o n | T h e r m a l l y P r o t e c t e d |
O p e r a t i n g V o l t a g e | 103-126 V a.c. |
R a t e d C u r r e n t | 0.11/0.11 A |
R a t e d P o w e r | 2 7 / 2 6 W |
R a t e d V o l t a g e | 2 3 0 V a.c. |
ENVIRONMENTAL AND THERMAL DATA
IP Protection Degree | IP44 |
---|---|
Operating Temperature | -40÷70 °C |
Storage Temperature | -40÷80 °C |
GENERIC DATA
Airflow Direction | Air exhaust over brackets |
---|---|
Casing Material | Die-Casting Aluminium |
Electrical Connection | Fast-On 3×0,5mm |
Fan Noise | 54/58 dB(A) |
Fixing System | Screws |
Life Expectancy | 40000 h at 40 °C |
MECHANICAL DATA
Bearing | Ball Bearing |
---|
PERFORMANCE
Max Airflow | 300/360 m³/h |
---|---|
Max Static Pressure | 167/187 Pa |
RPM | 2850/3400 RPM |
UL DATA
UL File Number Recognized Component | E223195 |
---|
