Description

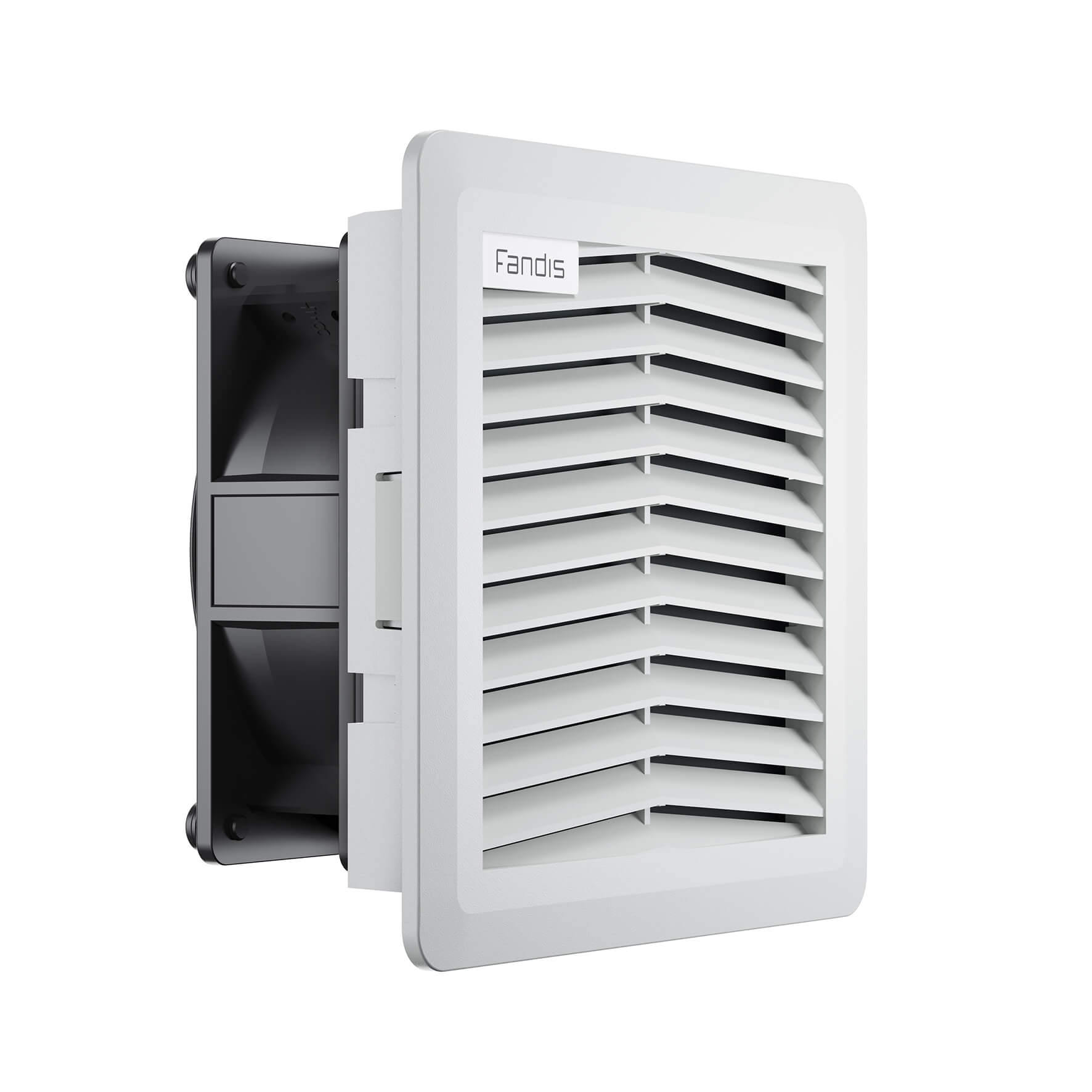

FILTER FAN 150MM X 150MM 230 V IP 54 RAL 7035 STANDARD FLOW
A P P R O V A L S
A p p r o v a l s | C E ; c U R u s ; U K C A |
---|
E L E C T R I C A L D A T A
A p p l i a n c e C l a s s | I |
---|---|
F r e q u e n c y | 5 0 / 6 0 Hz |
M o t o r P r o t e c t i o n | Impedance Protected |
O p e r a t i n g V o l t a g e | 216-244 V a.c. |
R a t e d C u r r e n t | 0 . 1 2 5 / 0 . 1 1 A |
R a t e d P o w e r | 20/19 W |
R a t e d V o l t a g e | 230 V a.c. |
E N V I R O N M E N T A L A N D T H E R M A L D A T A
IP Protection Degree | IP54 |
---|---|
Operating Temperature | -10÷50 °C |
Storage Temperature | -40÷70 °C |
GENERIC DATA
Airflow Direction | Direct |
---|---|
Electrical Connection | Terminal Block |
Fan Noise | 46/49 dB(A) |
Filter Class | G3 EN 779 |
Filter Class | ISO coarse 55% ISO 16890 |
Filter Material | thermo-linked progressive structure synthetic fibre |
Life Expectancy | 40000 h at 40 °C |
RAL Number | 7035 |
Spare Parts Filter Media | M12FPF-EU3 |
Wires Section | 18-12 AWG |
Wires Section | 1-2.5 mm² |
MECHANICAL DATA
Bearing | Ball Bearing |
---|---|
Mounting Wall Thickness | 1.5-2.2 mm |
PERFORMANCE
Max Airflow | 57/61 m³/h |
---|---|
Max Static Pressure | 66/73 Pa |
UL DATA
UL Ambient Temperature | 50 °C |
---|---|
UL Environmental Type Rating | Type 12 |
UL File Number Recognized Component | E237844 |
