Description

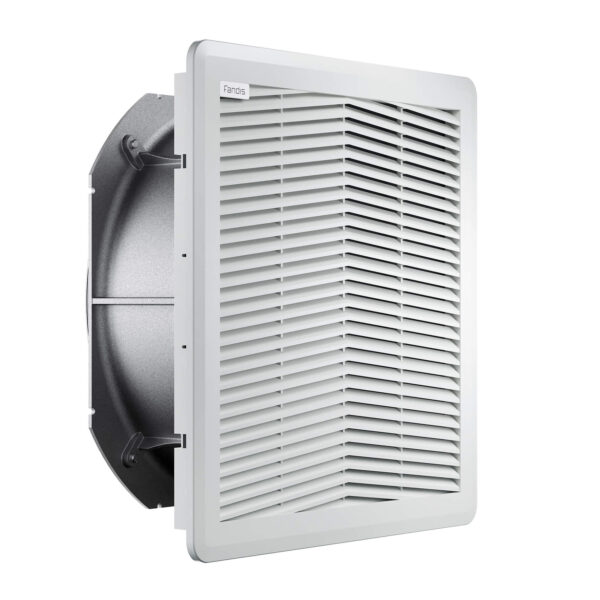

FILTERFAN 250MM X 250MM 230 V
Fanfilter ฟิลเตอร์ตู้คอนโทรล ตู้ไฟฟ้า กันน้ำ กันฝุ่น IP54 ติดตั้งง่ายไม่ต้องใช้เครื่องมือ ถอดแผ่นกรองทำความสะอาดง่าย การไหลเวียนอากาศในตู้ดี
A P P R O V A L S
A p p r o v a l s | C E ; U K C A |
---|
E L E C T R IC AL D A T A
A p p l i a n c e C l a s s | I |
---|---|
F r e q u e n c y | 5 0 / 6 0 Hz |
M o t o r P r o t e c t i o n | I m p e d a n c e P r o t e c t e d |
O p e r a t i n g V o l t a g e | 2 0 7 – 2 5 3 V a.c. |
R a t e d Cu r r e n t | 0 . 2 2 3 / 0 . 2 1 A |
R a t e d P o w e r | 3 4 / 3 5 W |
R a t e d V o l t a g e | 2 3 0 V a.c. |
E N V I R O N M E N T A L A N D T H E R M A L D A T A
I P P r o t e c t i o n D e g r e e | I P 5 4 |
---|---|
O p e r a t i n g T e m p e r a t u r e | – 1 0 ÷ 5 0 °C |
S t o r a g e T e m p e r a t u r e | – 4 0 ÷ 7 0 °C |
GENERIC DATA
Airflow Direction | Reverse |
---|---|
Electrical Connection | Terminal Block |
Fan Noise | 50/56 dB(A) |
Filter Class | G3 EN 779 |
Filter Class | ISO coarse 55% ISO 16890 |
Filter Material | thermo-linked progressive structure synthetic fibre |
Life Expectancy | 40000 h at 40 °C |
RAL Number | 7035 |
Wires Section | 18-12 AWG |
Wires Section | 1-2.5 mm² |
MECHANICAL DATA
Bearing | Ball Bearing |
---|---|
Mounting Wall Thickness | 1.5-2.2 mm |
PERFORMANCE
Max Airflow | 216/240 m³/h |
---|---|
Max Static Pressure | 112/120 Pa |
filter-fan-fpf-series-FPF15KGU230BE-120https://www.fandis.com/pdf/filter-fan-fpf-series-FPF15KGU230BE-120.pdf
