Description

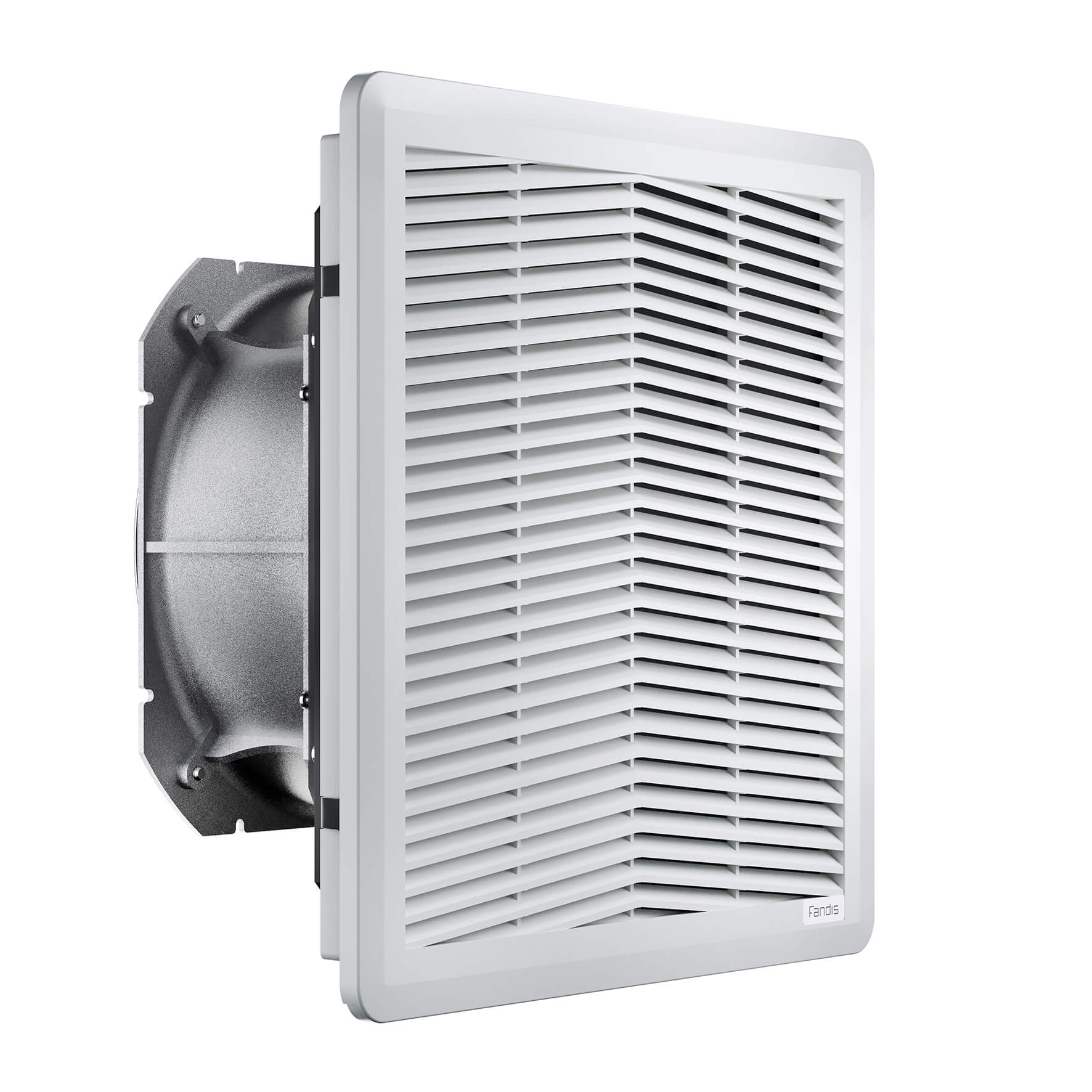

FILTER FAN 325MM X 325MM 230 Va.c. IP 54 RAL 7035 REVERS FLOW
A P P R O V A L S
A p p r o v a l s | C E ; c U R u s ; c U L u s ; c C S A u s ; U K C A |
---|
E L E C T R I C A L D A T A
A p p l i a n c e C l a s s | I |
---|---|
F r e q u e n c y | 5 0 / 6 0 H z |
M o t o r P r o t e c t i o n | T h e r m a l l y P r o t e c t e d |
O p e r a t i n g V o l t a g e | 2 0 7 – 2 5 3 V a.c. |
R a t e d C u r r e n t | 0 . 5 3 / 0 . 6 9 A |
R a t e d P o w e r | 1 2 0 / 1 5 7 W |
R a t e d V o l t a g e | 2 3 0 V a.c. |
E N V I R O N M E N T A L A N D T H E R M A L D A T A
I P P r o t e c t i o n D e g r e e | I P 5 5 |
---|---|
O p e r a t i n g T e m p e r a t u r e | – 2 5 ÷ 5 5 ° C |
S t o r a g e T e m p e r a t u r e | – 3 0 ÷ 7 0 °C |
GENERIC DATA
Airflow Direction | Reverse |
---|---|
Casing Material | PC/ABS UL94 V-0 |
Electrical Connection | Screwless Terminal Block |
Fan Noise | 72/75 dB(A) |
Filter Class | G3 EN 779 |
Filter Class | ISO coarse 55% ISO 16890 |
Filter Material | thermo-linked progressive structure synthetic fibre |
Life Expectancy | 57500/70000 h at 25 °C |
RAL Number | 7035 |
Spare Parts Filter Media | M20FPF-EU3 |
Wires Section | 0.75-2.5 mm² |
Wires Section | 20-14 AWG |
MECHANICAL DATA
Bearing | Ball Bearing |
---|---|
Mounting Wall Thickness | 1.3-3.7 mm |
PERFORMANCE
Airflow with Exhaust Filter | 515/570 m³/h |
---|---|
Max Airflow | 760/850 m³/h |
Max Static Pressure | 310/305 Pa |
UL DATA
UL Environmental Type Rating | Type 12 |
---|---|
UL File Number Listed | E500932 |
UL File Number Recognized Component | E237844 |
UL Surrounding Temperature | 55 °C |
filter-fan-ff-series-FF20A230UER1
